垂直盒须图

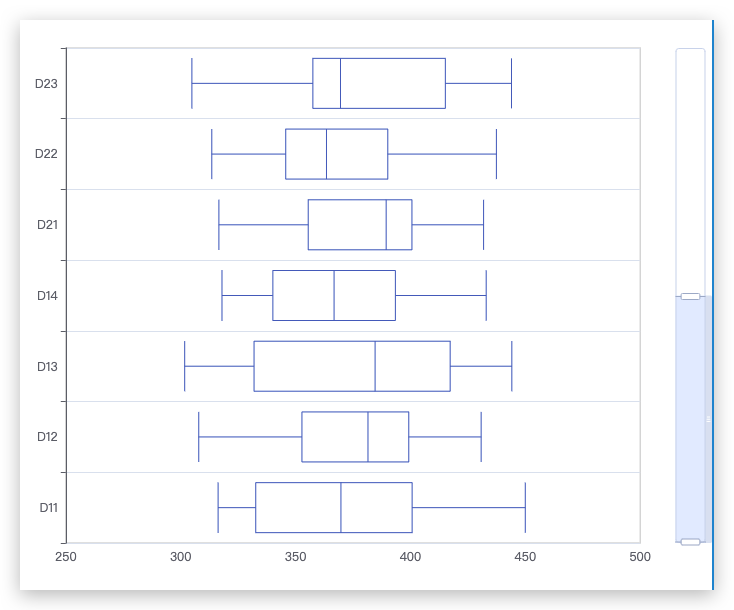

展现效果如下:

image-20211228103929251

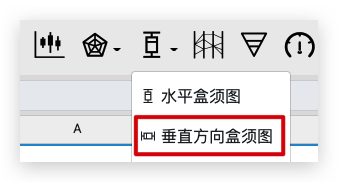

选择图表

image-20211228103953415

选择水平盒须图。

测试sql

select *,
RAND()*30+330 q1,
RAND()*30+360 q2,
RAND()*30+390 q3,
RAND()*20+300 lowest,
RAND()*20+430 highest
from employee
order by DEPT_ID

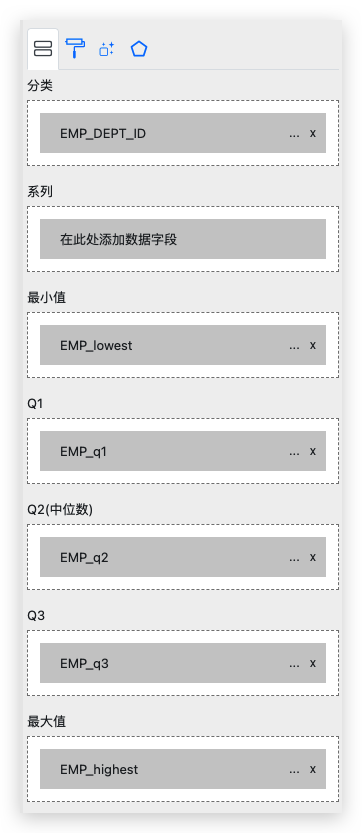

数据绑定设置

image-20211228103247578

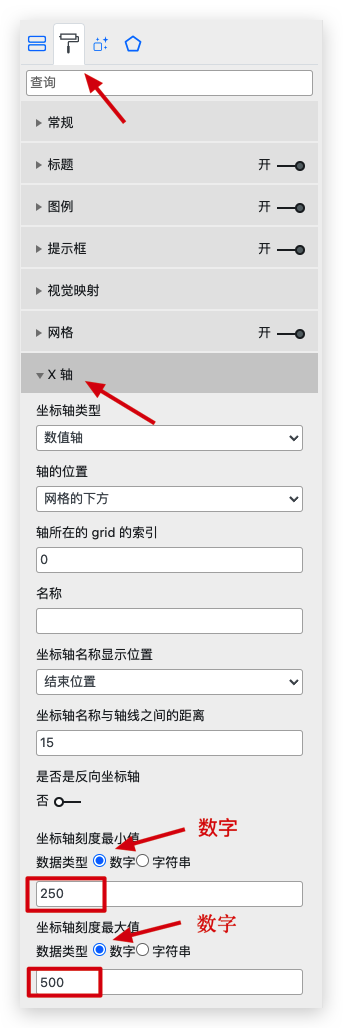

X轴设置

image-20211228104056727

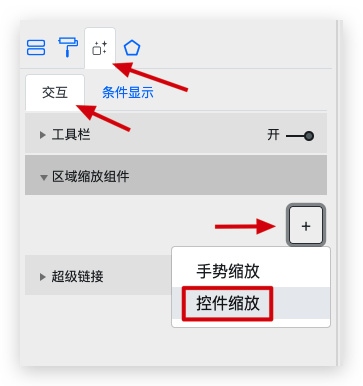

添加控件缩放组件

image-20211228103440249

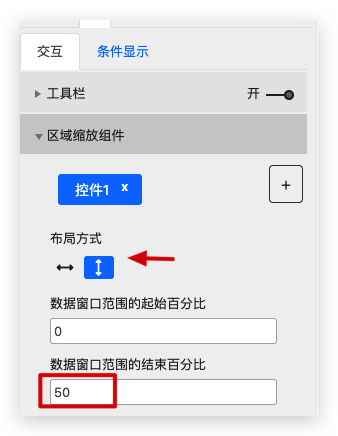

设置缩放控件的结束百分比为50,布局方式为竖向:

image-20211228104127400

预览

image-20211228103929251
